Auxiliary Jack Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Connect a commercially-available nonresistant plug to the auxiliary jack.
Verify that the continuity between the auxiliary jack terminals is as indicated in the table.

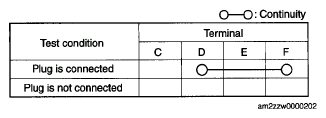

Fig 1: Auxiliary Jack Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

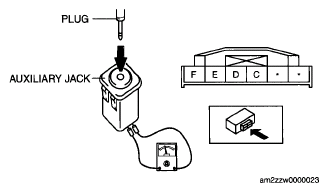

Fig 2: Connecting Nonresistant Plug To Auxiliary Jack
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the auxiliary jack.
