High-Mount Brake Light Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the cover in the interior of the liftgate.
  4. Remove the nut.
  5. Disconnect the connector.
  6. Remove the high-mount brake light.
  7. Install in the reverse order of removal.

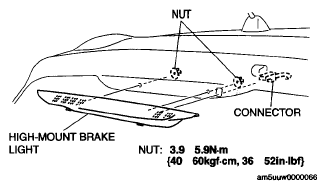

    Fig 1: High-Mount Brake Light Remove / Install Replacement Components With Torque Specifications
    G05545890Courtesy of MAZDA MOTORS CORP.
