Rear Blower Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassemble.

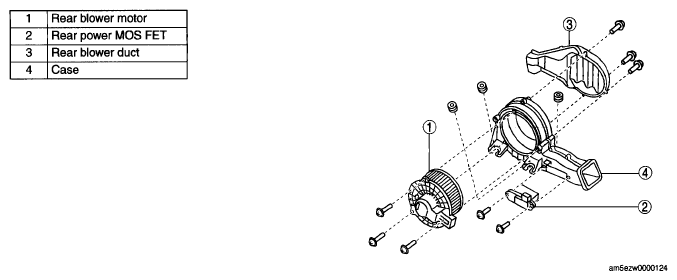

    Fig 1: Identifying Rear Blower Motor, Duct And Power Mos Fet
    G05545312Courtesy of MAZDA MOTORS CORP.
