Pre-inspection preparation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST (49 D043 0A0) to the master cylinder in the orientation shown in the figure.
NOTE:
- When installing the SST (49 D043 0A0) to the master cylinder, use a commercially available flare nut wrench.
  - Flare nut across flat: 10 mm {0.39 in}

    Fig 1: Installing SST (49 D043 0A0) To Master Cylinder
    Courtesy of MAZDA MOTORS CORP.

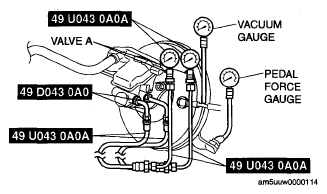

Connect the SSTs , a vacuum gauge, and a pedal force gauge to the master cylinder, and bleed the air from the SSTs and the brake line. (Bleed the air from the SSTs using air bleed valve A.)

Fig 2: Connecting SSTs To Vacuum Gauge
Courtesy of MAZDA MOTORS CORP.
