Dust Seal Assembly Note
WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

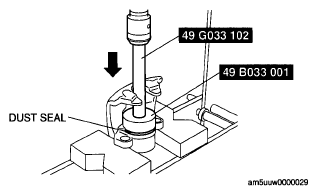

- Assemble a new dust seal to the caliper using the SSTs
and a press with a press-in force of 834 N {85 kgf, 187 in.lbf}.
- Verify that there is no gap between the dust seal and caliper body.
