Clock Switch Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Clock switch

NOTE:

Clock switch built with the hazard warning switch.

Disconnect the negative battery cable.
Remove the clock switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)

Verify continuity and resistance between the clock switch terminals.

If the continuity and resistance is not as specified, replace the clock switch.

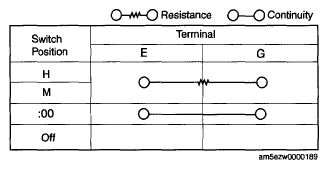

Fig 1: Clock Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Clock Switch Terminals
Courtesy of MAZDA MOTORS CORP.

Between the terminal E-G resistance.

RESISTANCE SPECIFICATION

Switch position	Resistance (Ohm)
H	409-451
M	713-787
:00	0

Connect the positive battery to the clock switch terminal A, the negative battery to the clock switch terminal H.
Verify the LED illuminates.
- If there is any malfunction, replace the clock switch.
