Front Console Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  4. Remove the selector lever knob (ATX), shift lever knob (MTX).
  5. Pull the indicator panel (ATX), boot panel (MTX) upward and detach clips A.
  6. Remove the indicator panel.

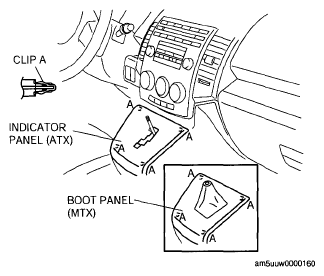

    Fig 1: Identifying Indicator Panel And Boot Panel
    G05545830Courtesy of MAZDA MOTORS CORP.
