Dashboard Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Dashboard center panel (vehicles without car-navigation system) (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION .)
    2. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
    3. Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

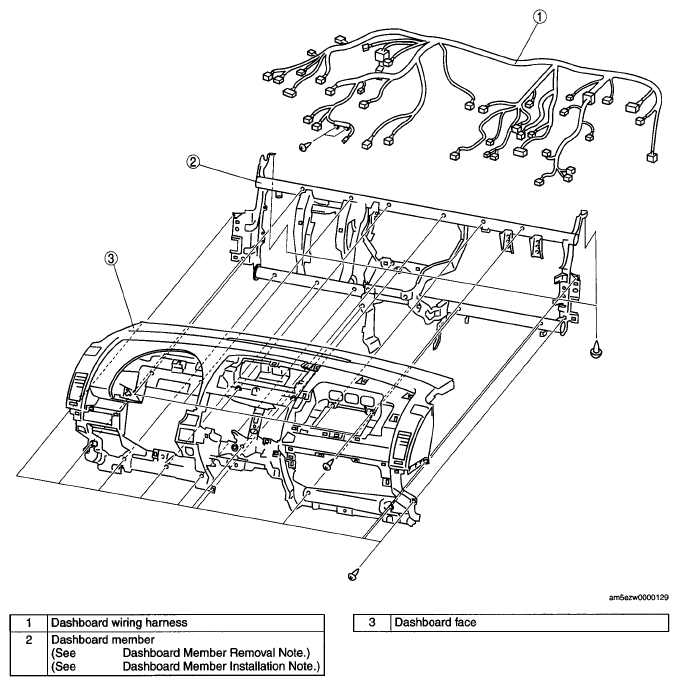

    Fig 1: Identifying Dashboard Wiring Harness Connector
    G05545810Courtesy of MAZDA MOTORS CORP.
