Dashboard Member Installation Note

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the dashboard member to the dashboard face while holding the dashboard member with the center duct.
  2. Install the screws.

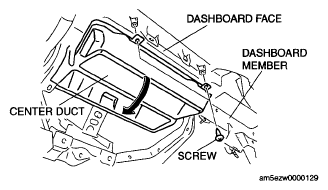

    Fig 1: Installing Dashboard Member To Dashboard Face
    G05545811Courtesy of MAZDA MOTORS CORP.
