DTC P2123 [L3]: Notes

DTC P2123 (L3) DETECTION CONDITION & POSSIBLE CAUSES

DTC P2123 Accelerator pedal position (APP) sensor No.1 circuit high input
DETECTION CONDITION
  • The PCM monitors the input voltage from APP sensor No.1 when the engine is running. If the input voltage is above 4.8 V  , the PCM determines that the APP sensor No.1 circuit input voltage is high.

Diagnostic support note
  • This is a continuous monitor (CCM).
  • MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • APP sensor connector or terminal malfunction
  • Short to power supply in wiring harness between APP sensor terminal B and PCM terminal 1AP
  • APP sensor No.1 malfunction
  • PCM connector or terminal
  • Open circuit in wiring harness between APP sensor terminal C and PCM terminal 1AV
  • PCM malfunction

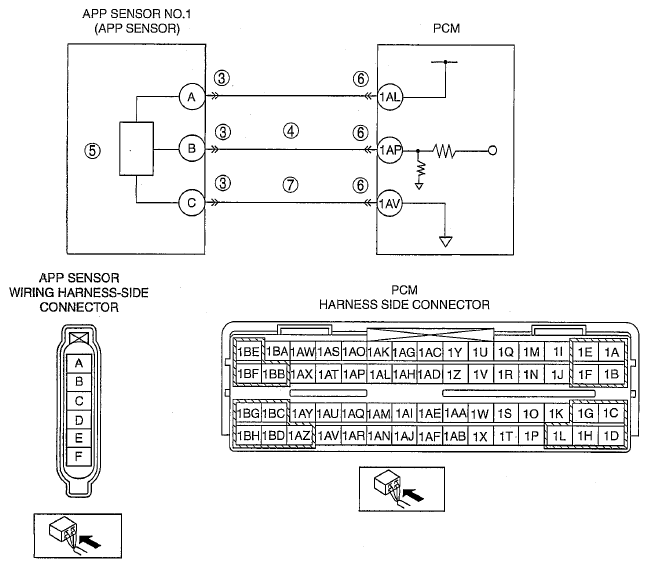

G06149066
