DTC P0335 [L3]: Notes
DTC P0335 (L3) DETECTION CONDITION & POSSIBLE CAUSES
| DTC P0335 |
CKP sensor circuit problem |
| DETECTION CONDITION |
- If the PCM does not receive input voltage from the CKP sensor for 4.2 s
while MAF is 2.0 g/s {0.26 lb/min.} or above
, the PCM determines that the CKP sensor circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if PCM detects the above malfunction conditions during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|

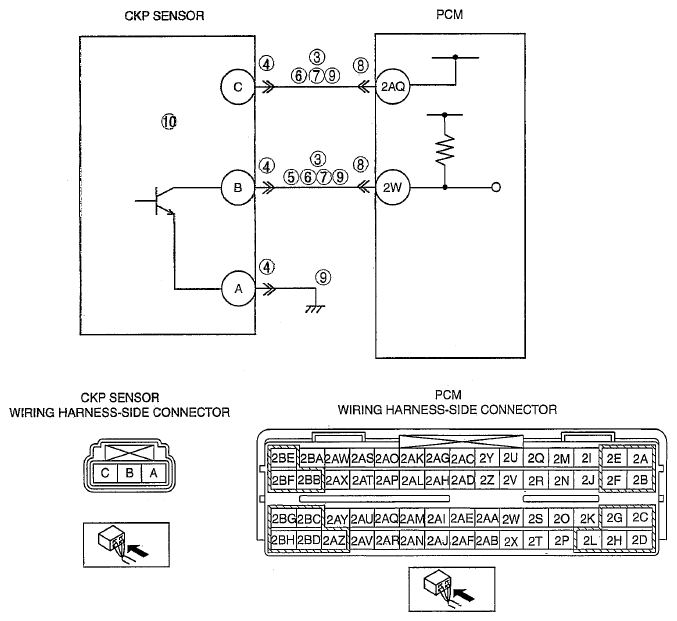

| POSSIBLE CAUSE |
- CKP sensor connector or terminal malfunction
- Short to the power supply between CKP sensor terminal B and PCM terminal 2W
- Short to ground between CKP sensor terminal C and PCM terminal 2AQ
- Short to ground between CKP sensor terminal B and PCM terminal 2W
- Both CKP sensor wires are shorted to each other
- PCM connector or terminal malfunction
- Open circuit between CKP sensor terminal A and body ground
- Open circuit between CKP sensor terminal B and PCM terminal 2W
- Open circuit between CKP sensor terminal C and PCM terminal 2AQ
- CKP sensor is dirty
- CKP sensor malfunction
- CKP sensor pulse wheel malfunction
- PCM malfunction
|
|
|
