DTC P0112 [L3]: Notes
DTC P0112 (L3) DETECTION CONDITION & POSSIBLE CAUSES
| DTC P0112 |
IAT sensor circuit low input |
| DETECTION CONDITION |

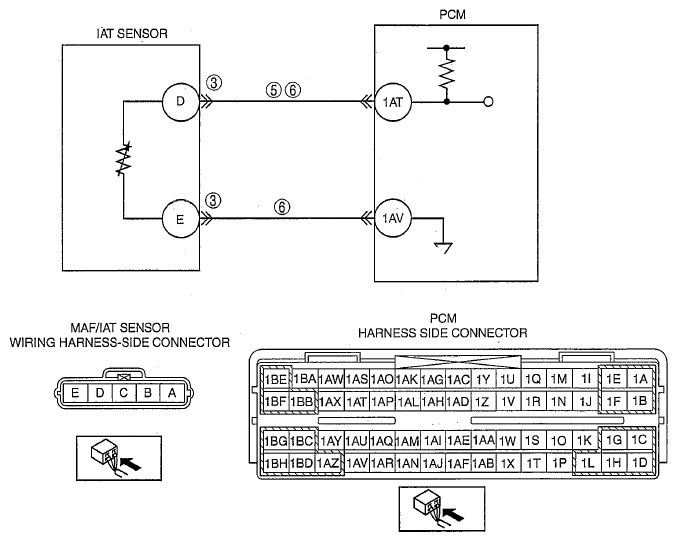

- The PCM monitors the IAT sensor signal at PCM terminal 1 AT. If the PCM detects the IAT sensor voltage/below 0.16 V
for 5s
, the PCM determines that the IAT sensor circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Poor connection at MAF/IAT sensor or PCM connector
- IAT sensor malfunction
- Short each wiring harness IAT signal circuit and IAT ground circuit
- Short to ground in wiring harness between MAF/IAT sensor terminal D and PCM terminal 1AT
- PCM malfunction
|
|
|
