A/F Sensor Heater Circuit Open/Short Inspection (Heater): Notes

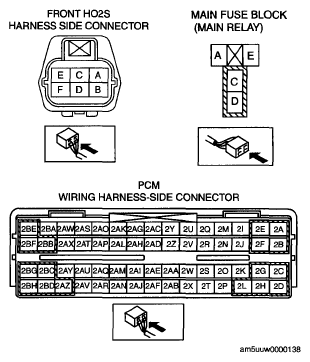

Fig 1: Identifying PCM And A/F Sensor Connector Terminals
G05543253Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Disconnect the A/F sensor connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
