Main Fuse Block

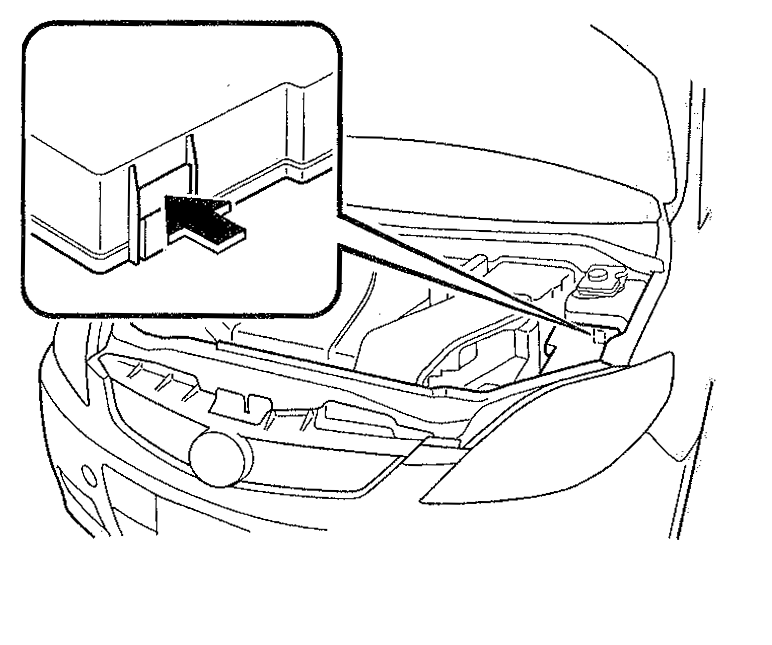

Main fuse block is located next to the battery inside the engine compartment near the left front headlamp. See illustration below.
NOTE:
Use designated fuses only.

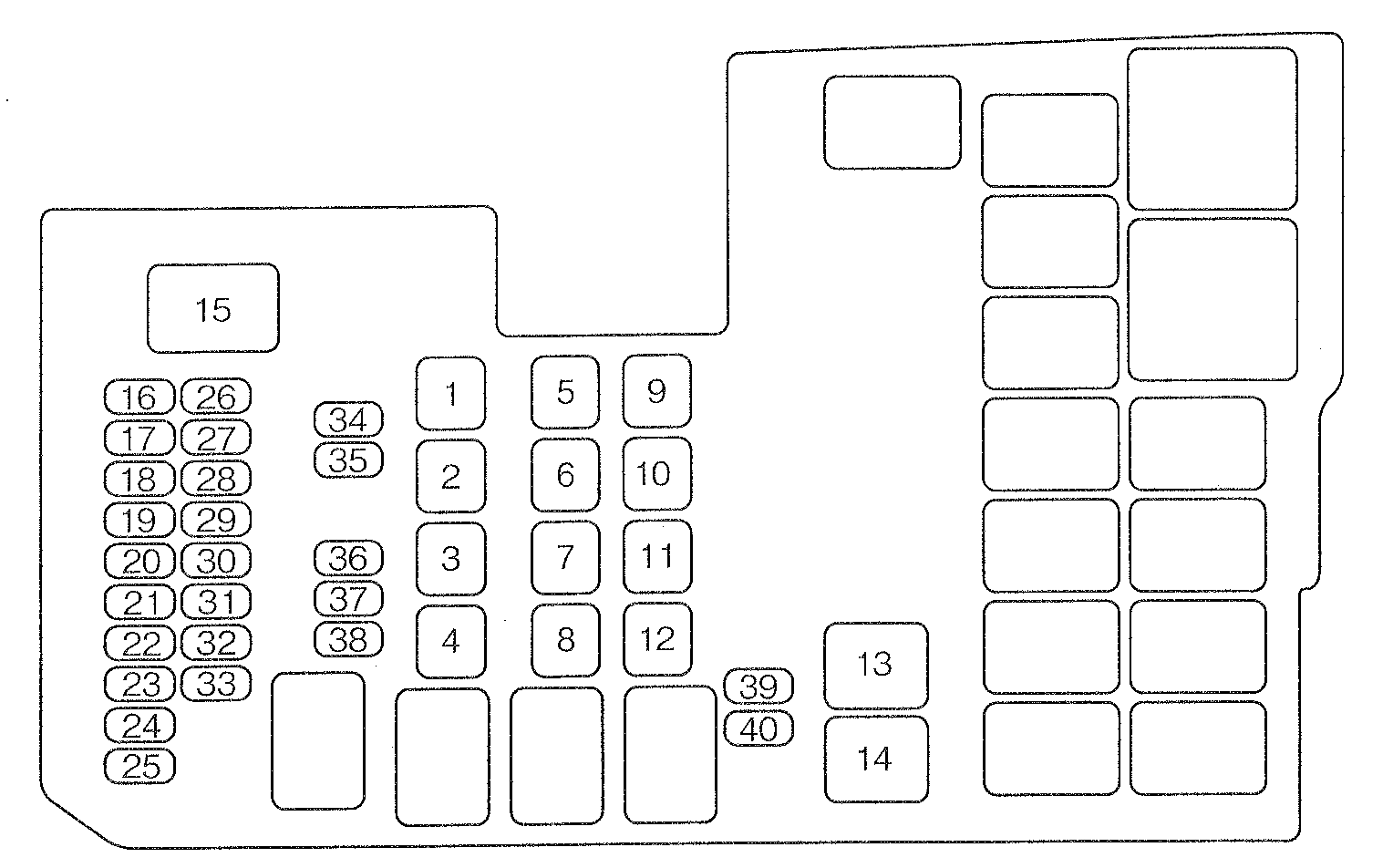

IDENTIFYING FUSES (ENGINE COMPARTMENT)
| DESCRIPTION | FUSE RATING | CIRCUIT PROTECTED | |
|---|---|---|---|
| 1 | FAN | 30A | Cooling fan |
| 2 | FAN | 30A | Cooling fan |
| 3 | P.WIND *1 | 40A | Power windows |
| R.BLOWER *2 | 30A | Rear Blower motor | |
| 4 | IG KEY1 INJ *2 | 30A | For protection of various circuits |
| IG KEY2 *2 | 20A | - | |
| 5 | ABS-V | 20A | ABS |
| 6 | ABS-P | 30A | ABS |
| 7 | IG KEY2 *1 | 20A | - |
| IG KEY1 *2 | 40A | For protection of various circuits | |
| 8 | HEATER DEICER TCM | 20A | - |
| 9 | BLOWER *1 | 40A | Blower motor |
| F.BLOWER *2 | 20A | Front blower motor | |
| 10 | GLOW IG KEY1 *1 | 40A | For protection of various circuits |
| F.BLOWER *2 | 20A | Front blower motor | |
| 11 | BTN | 60A | For protection of various circuits |
| 12 | IG KEY 2 | 40A | - |
| 13 | CLOSER P.SLIDE LH |
20A | Easy closer * |
| 14 | CLOSER P.SLIDE RH |
20A | Easy closer * |
| 15 | EHPAS | 80A | EHPAS |
| 16 | FOG | 15A | Front fog lights * |
| 17 | D.LOCK | 20A | Power door lock |
| 18 | P.WIND H/CLEAN |
20A | Power windows |
| 19 | ETC | 10A | Accelerator position sensor |
| 20 | DEFOG | 25 | Rear window defroster |
| 21 | ENG +B | 10A | PCM |
| 22 | STOP | 10A | Brake lights |
| 23 | FUEL | 20A | Fuel pump |
| 24 | HAZARD | 10A | Turn signals Hazard warning flashers |
| 25 | ROOM | 15A | Overhead lights Map lights Luggage compartment light For protection of various circuits |
| 26 | - | - | - |
| 27 | MAG | 10A | Mag netic clutch |
| 28 | GLOW SIG *1 | 7.5A | - |
| -*2 | - | - | |
| 29 | HEAD HR | 10A | Headlight high beam (RH) |
| 30 | HEAD HL | 10A | Headlight high beam (LH) |
| 31 | HORN | 15A | Horn |
| 32 | SUN ROOF | 20A | Moonroof * |
| 33 | MIRROR, BURGLAR *1 | 7.5a | Theft Deterent System |
| -*2 | - | - | |
| 34 | HEAD LR | 15A | Headlight low beam (RH) Manual headlight leveling * |
| 35 | HEAD LL | 15A | Headlight low beam (LH) |
| 36 | ENG BAR2 | 15A | O2 heater |
| 37 | ENG BAR | 15A | Air flow Engine control system |
| 38 | INJ ENG BA | 20A | Injector |
| 39 | ILLIMI | 10A | Illumination |
| 40 | TAIL | 10A | License plate lights Parking lights Tail lights For protection of various circuits |
| *: Some models. *1: Without rear ventilation system. *2: With rear ventilation system. |
|||
