Fuse Block

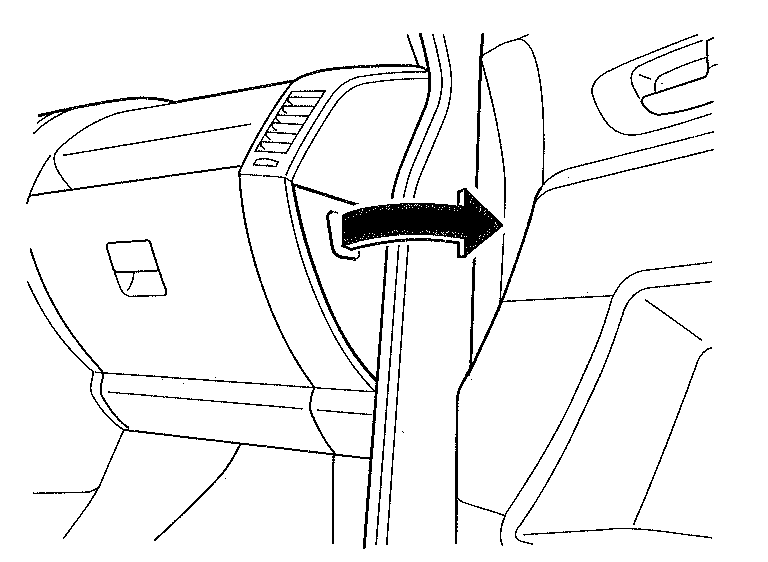

Fuse block is located on end of dash on passenger side. Turn off ignition switch and other switches before removing cover. See illustrations below.
NOTE:
Use designated fuses only.

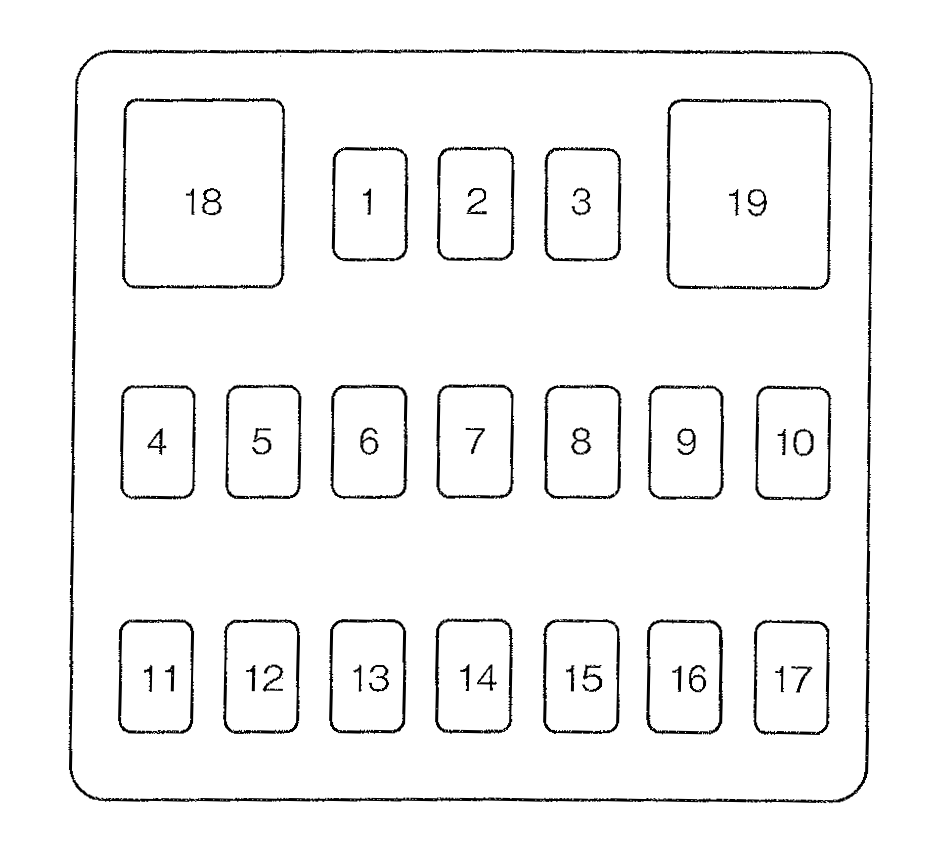

IDENTIFYING FUSES (PASSENGER COMPARTMENT)
| DESCRIPTION | FUSE RATING | CIRCUIT PROTECTED | |
|---|---|---|---|
| 1 | M.DEF | 7.5A | Mirror Defroster * |
| 2 | - | - | - |
| 3 | ENG3 | 20A | Ignition Switch |
| 4 | P.OUTLET | 15A | Accessory Socket |
| 5 | SHIFT/L | 5A | AT Shift * |
| 6 | CIGAR | 15A | Lighter |
| 7 | MIRROR | 7,5A | Audio System * Power Control Mirror |
| 8 | A/C | 10A | A/C Conditioner |
| 9 | F.WIP | 25A | Windshield Wiper & Washer |
| 10 | R.WIP | 15A | Rear Window Wiper & Washer |
| 11 | ENG | 5A | Main Relay |
| 12 | METER | 10A | Instrument Cluster |
| 13 | SAS | 10A | Supplemental Restraint System |
| 14 | S.WARM | 15A | Seat Warmer * |
| 15 | ABS/DSC | 5A | ABS |
| 16 | EHPAS | 5A | Electro-Hydraulic Power Asist Steering |
| 17 | ENG2 | 15A | - |
| 19 | P/W | 30A | Power Windows |
| 19 | P/W | - | - |
| *: Some models | |||
