Battery Cover Installation Note

Install the battery duct between the battery cover and the battery box.

Fig 1: View Of Battery Cover, Battery Box And Battery Duct
Courtesy of MAZDA MOTORS CORP.

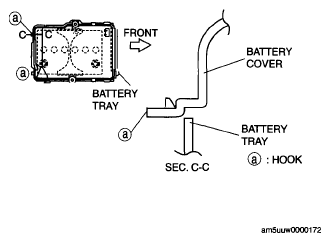

Install with battery cover hooks A aligned with the battery tray holes at two points.

Fig 2: View Of Battery Cover Hooks
Courtesy of MAZDA MOTORS CORP.

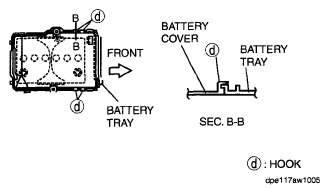

Install with battery cover hooks D aligned with the battery tray flange at four points.

Fig 3: View Of Battery Cover Hooks
Courtesy of MAZDA MOTORS CORP.

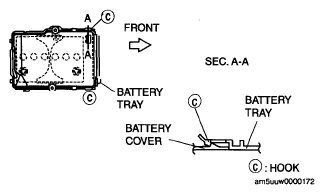

Set the battery cover to battery tray hooks C at two points.

Fig 4: View Of Battery Tray Hooks
Courtesy of MAZDA MOTORS CORP.
