Battery Clamp Installation Note

  1. Assemble the battery clamp so that the arrow on it is pointed toward the front of the vehicle.

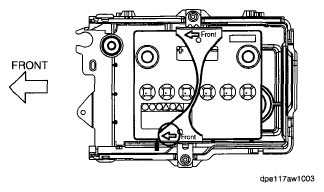

    Fig 1: View Of Battery Clamp
    G04955074Courtesy of MAZDA MOTORS CORP.
