Rear ABS Wheel-speed Sensor Wiring Harness Installation Note

  1. Pass the rear ABS wheel-speed sensor wiring harness outside the rear parking brake cable as shown in the figure.
  2. Install the rear ABS wheel-speed sensor wiring harness.

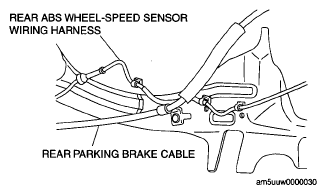

    Fig 1: Identifying Rear ABS Wheel-Speed Sensor Wiring Harness
    G05545007Courtesy of MAZDA MOTORS CORP.
