Rearview Mirror Removal/Installation [Vehicles With The Auto Wiper System]

Insert a tape-wrapped flathead screwdriver into the notch and pry with the screwdriver in the direction shown by the arrow to remove the covers.

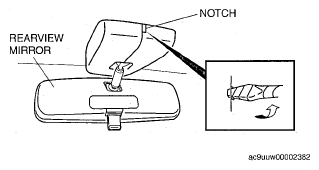

Fig 1: Identifying Rearview Mirror Components
Courtesy of MAZDA MOTORS CORP.
Remove the covers.
Remove the rain sensor. (See RAIN SENSOR REMOVAL/INSTALLATION .)

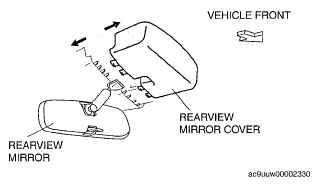

Fig 2: View Of Rearview Mirror Cover
Courtesy of MAZDA MOTORS CORP.
Make a tool as shown in the figure using wire.
CAUTION:
- Using the tool with bare hands can cause injury. Always wear gloves when using the tool.
- To prevent damage to the lens sensor, do not use a screwdriver.

  Fig 3: View Of Rearview Mirror Removal Tool
  Courtesy of MAZDA MOTORS CORP.
Insert the tool to the position shown in the figure and push the center part of the spring.
CAUTION:
- Perform the procedure while being careful not to damage the lens sensor.

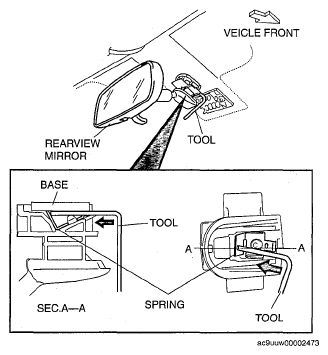

  Fig 4: View Of Tool In Rearview Mirror
  Courtesy of MAZDA MOTORS CORP.
Remove the rearview mirror in the direction of the arrow.
CAUTION:
- When removing the rearview mirror, the mirror may hit the top sealing, possibly damaging it. Therefore, hold the mirror body securely by hand when removing the rear view mirror so that the mirror does not contact it.

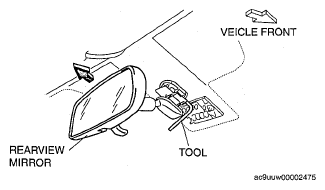

  Fig 5: View Of Rearview Mirror Removal Procedure
  Courtesy of MAZDA MOTORS CORP.
