Center Panel Removal/Installation

  1. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Pull the center panel outward and detach clips A.
  5. Remove the center panel.
  6. Install in the reverse order of removal.

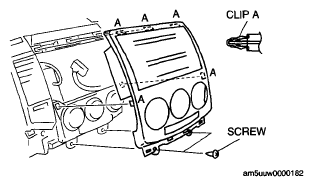

    Fig 1: Identifying Center Panel Components
    G05545838Courtesy of MAZDA MOTORS CORP.
