Sliding Door Lock Actuator Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the table.

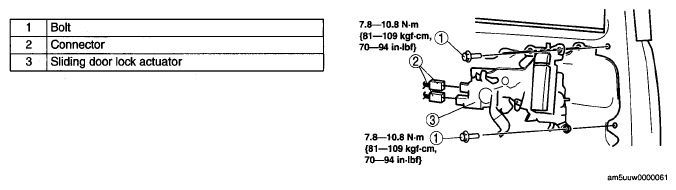

    Fig 1: View Of Sliding Door Lock Actuator Components With Torque Specifications
    G05543485Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
