Selector Lever Inspection
- Turn the ignition switch to the ON position (engine OFF)

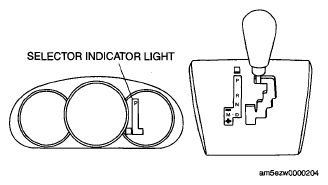

- Verify that the selector lever can be shifted as shown in the figure.
- Verify that the positions of the selector lever and the indicator are aligned.
- If there is any malfunction, adjust the selector cable and TR switch. (See SELECTOR CABLE ADJUSTMENT .) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FS5A-EL] .)
- Verify that the vehicle operates in each selected range.
