Locknut Installation Note

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new locknut and stake it as shown.

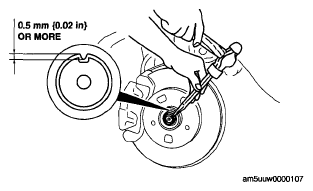

    Fig 1: Staking Locknut
    G05544871Courtesy of MAZDA MOTORS CORP.
