Liftgate Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the liftgate lock striker.
  3. Install in the reverse order of removal.
  4. Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)

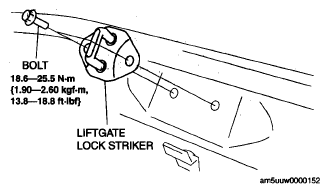

    Fig 1: Liftgate Lock Striker Remove / Install Replacement Components With Torque Specifications
    G05543499Courtesy of MAZDA MOTORS CORP.
