Liftgate Latch switch

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

Fig 1: Pressing Latch Lever
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the liftgate latch switch terminals.
- If not as specified, replace the liftgate latch and lock actuator.

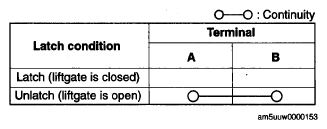

  Fig 2: Liftgate Latch Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 3: Liftgate Latch Switch - Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
