Front Door Key Cylinder Switch Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the front door key cylinder switch terminals.

If not as specified, replace the front door latch and lock actuator.

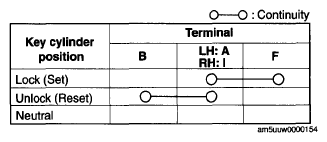

Fig 1: Front Door Key Cylinder Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Door Key Cylinder Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.
