Driver-side Front Door

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect for continuity between the door lock-link switch terminals.
    • If not as specified, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

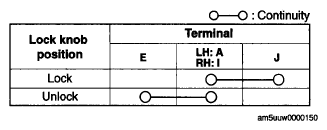

      Fig 1: Door Lock-Link Switch Continuity Chart
      G05543488Courtesy of MAZDA MOTORS CORP.

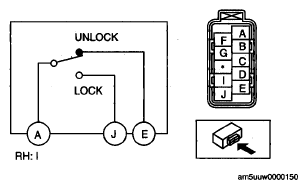

      Fig 2: Door Lock-Link Switch - Circuit Diagram
      G05543489Courtesy of MAZDA MOTORS CORP.
