Front Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

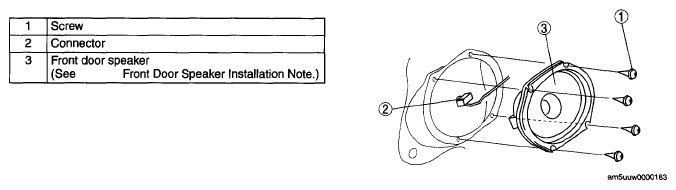

    Fig 1: Identifying Front Door Speaker Screws And Connector
    G05543565Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
