Stabilizer Bracket Installation Note

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the installation direction of the stabilizer bracket (the arrow should point to the front) by placing the stabilizer bar so that the identification mark faces the left side of the vehicle.
  2. Install the stabilizer bushings and brackets so that they contact the stabilizer stoppers.

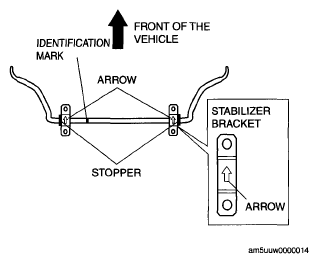

    Fig 1: Identifying Installation Direction Of Stabilizer Bracket
    G05544821Courtesy of MAZDA MOTORS CORP.
