Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Before removing the piston rod nut, secure the shock absorber and coil spring in the SSTs. Otherwise, the coil spring could fly off under tremendous pressure and cause serious injury or death, or damage to vehicle parts.

Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .)
Disassemble in the order indicated in the table.
Assemble in the reverse order of removal.

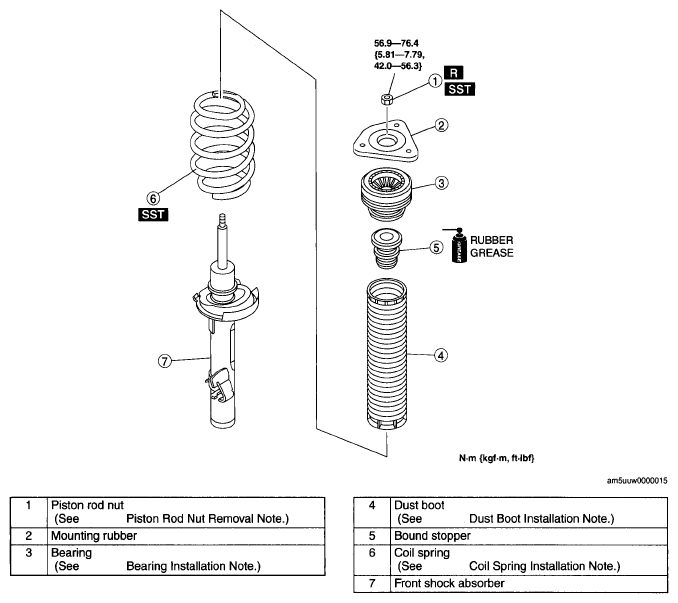

Fig 1: Front Shock Absorber And Coil Spring Disassemble/Assemble Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
