Dust Boot Installation Note
WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
- Wipe the grease off the ball stud.
- Fill the inside of the new dust boot with grease.

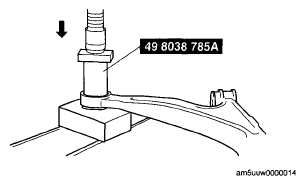

- Press the boot onto the ball joint using the SST
.
- Wipe away the excess grease.
Courtesy of MAZDA MOTORS CORP.
