License Plate Light Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the liftgate trim. (See LIFTGATE TRIM REMOVAL/INSTALLATION ).
  4. While cutting the double-sided adhesive tape using a flathead screwdriver or razor, separate the cover from the body.
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
  5. Press the lens tabs in the direction indicated by the arrows and remove the lens.
  6. Remove the socket.
  7. Remove the license plate light bulb.
  8. Install in the reverse order of removal.

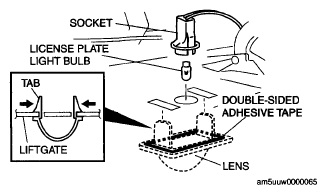

    Fig 1: Identifying License Plate Light Remove / Install Components
    G05545891Courtesy of MAZDA MOTORS CORP.
    1. Attach the double-sided adhesive tape to the cover as shown in the figure.

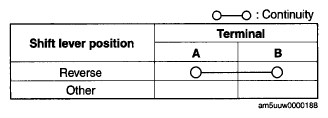

      Fig 2: Continuity Chart
      G05545892Courtesy of MAZDA MOTORS CORP.
