Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION ).
  3. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION ).
  4. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION ).
  5. Remove the climate control unit, (with car-navigation unit) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] ).
  6. Remove the car-navigation unit, (vehicles with car-navigation unit) (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION ).
  7. Remove the dashboard center panel. (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
  8. Remove the hazard warning switch.
  9. Install in the reverse order of removal.

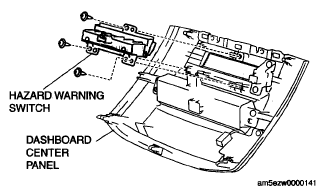

    Fig 1: Identifying Hazard Warning Switch And Dashboard Center Panel
    G05545907Courtesy of MAZDA MOTORS CORP.
