Hazard Warning Switch Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the hazard switch terminals is as indicated in the table.
- If not as indicated in the table, replace the hazard warning switch.

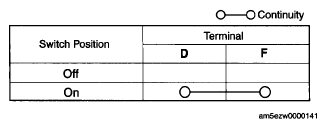

  Fig 1: Hazard Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

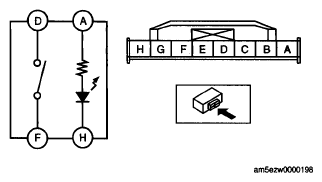

  Fig 2: Identifying Hazard Switch Connector
  Courtesy of MAZDA MOTORS CORP.
Connect the positive battery to the hazard warning switch terminal A, the negative battery to the hazard warning switch terminal H.
Verify that LED illuminated.
- If there is any malfunction replace the hazard warning switch.
