Front Side Turn Light Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Move the front side turn light in the direction of the arrow (1) and detach the tab.
  4. Pull area A of the front side turn light in the direction of the arrow (2) and remove the front side turn light.
  5. Disconnect the front side turn light connector.
  6. Install in the reverse order of removal.
    CAUTION:
    • Always assemble the front side turn light with the tab towards the vehicle front.

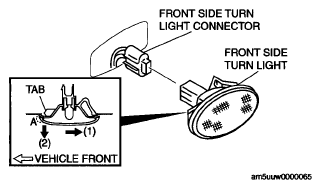

      Fig 1: Identifying Front Side Turn Light And Connector
      G05545887Courtesy of MAZDA MOTORS CORP.
