Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Slightly bend back the mudguard.
  4. Disconnect the front fog light bulb connector.
  5. Remove the screws and bolt, then remove the front fog light.
  6. Install in the reverse order of removal.
  7. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING ).

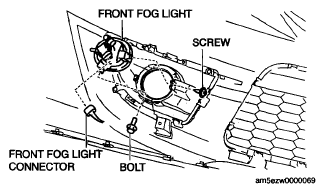

    Fig 1: Identifying Front Fog Light And Connector
    G05545882Courtesy of MAZDA MOTORS CORP.
