Door Switch Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Disassemble in the order indicated in the table.

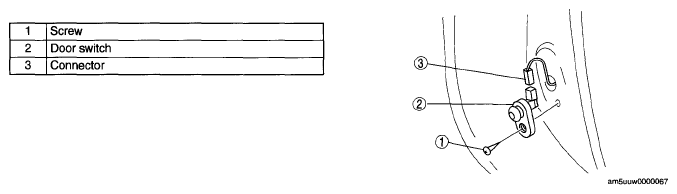

    Fig 1: Identifying Door Switch And Connector
    G05545925Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
