Door Switch Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between door switch terminal and the body ground is as indicated in the table.
- If not as indicated in the table, replace the door switch.

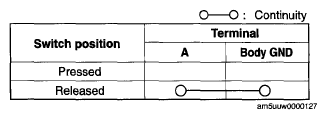

  Fig 1: Door Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Checking Door Switch
  Courtesy of MAZDA MOTORS CORP.
