Cargo Compartment Light Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the cargo compartment light.
  4. Disconnect the cargo compartment light connector.
  5. Remove the cargo compartment light bulb.
  6. Install in the reverse order of removal.

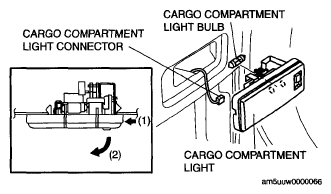

    Fig 1: Identifying Cargo Compartment Light Remove / Install Components
    G05545920Courtesy of MAZDA MOTORS CORP.
