Cargo Compartment Light Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the cargo compartment light terminals is as indicated in the table.
- If not as indicated in the table, replace the cargo compartment light.

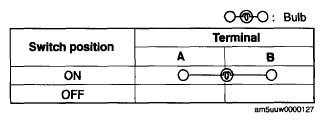

  Fig 1: Cargo Compartment Light Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Cargo Compartment Light - Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
