Back-Up Light Switch Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the back-up light switch terminals is as indicated in the table.
- If not as indicated in the table, replace the backup light switch.

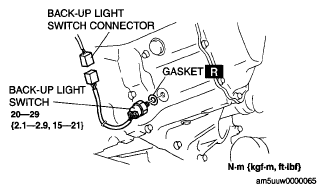

  Fig 1: Back-Up Light Switch Remove / Install Replacement Components With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Back-Up Light Switch - Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
