Windshield Wiper Motor Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

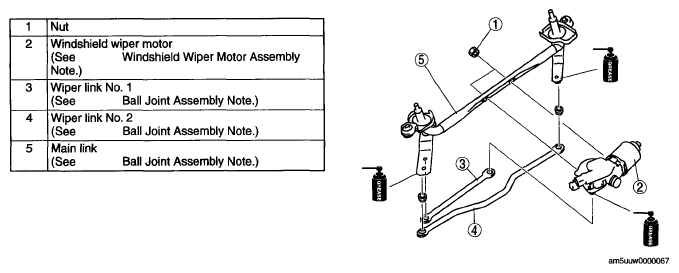

    Fig 1: Identifying Windshield Wiper Motor Disassemble/Assemble Components
    G05543522Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
