Washer Fluid-Level Sensor Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Inspect for continuity between the washer fluid-level sensor terminals using an ohmmeter.
- If not as specified, replace the washer fluid-level sensor.

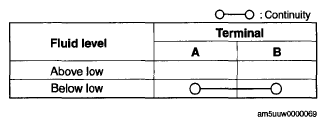

  Fig 1: Washer Fluid-Level Sensor Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Washer Fluid-Level Sensor Terminals
  Courtesy of MAZDA MOTORS CORP.
