Refrigerant Line Removal/Installation: Notes
WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
- Disconnect the negative battery cable.
- Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)
- Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [L3] .)
- Remove the splash shield.

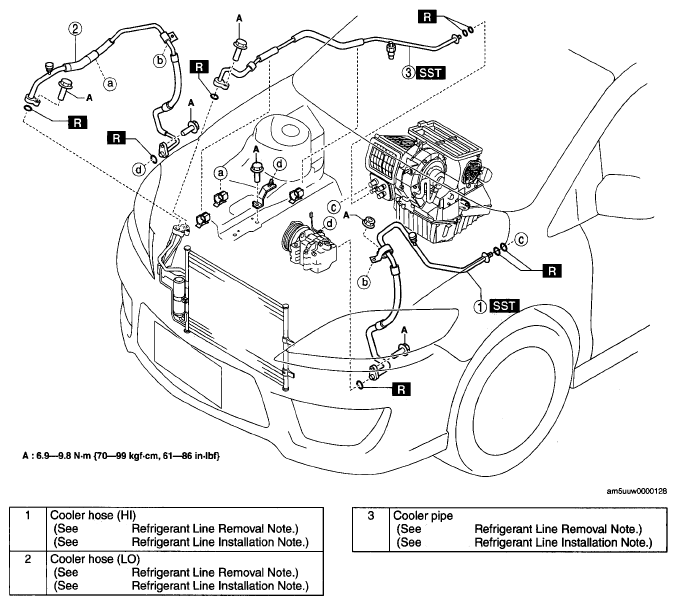

- Remove in the order indicated in the table. Do not allow compressor oil to spill.CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
