Airflow Mode Main Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Removal the following parts.
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Selector lever component (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  4. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  5. Remove the front scuff plate. (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  6. Remove the front side trim. (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  7. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  8. Remove the column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
  9. Remove the shower duct (LH).
  10. Remove the airflow mode rod (1).
  11. Remove the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (Full-auto air conditioner)
  12. Remove the airflow mode main link.
  13. Install in the reverse order of removal.

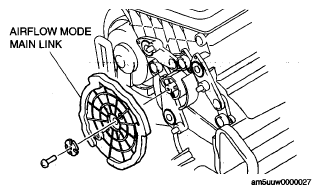

    Fig 1: Identifying Airflow Mode Main Link
    G05545307Courtesy of MAZDA MOTORS CORP.
