Power Brake Unit Removal/Installation
WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3] .)
- Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)

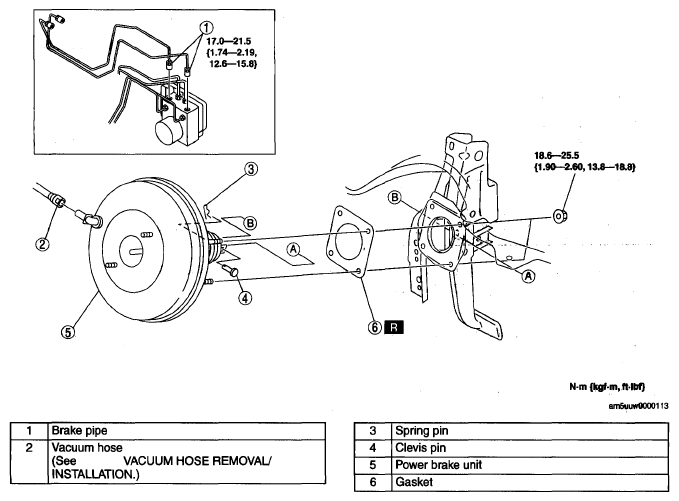

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the brake pedal. (See BRAKE PEDAL INSPECTION .)
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING .)
