Master Cylinder Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING .)

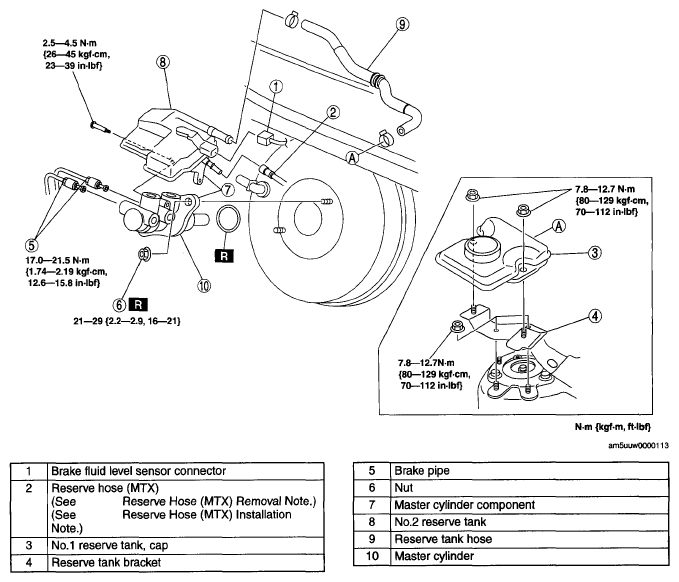

Fig 1: Master Cylinder Removing/Installing Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
