Retaining Clip Installation Note

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily install the retaining clip to the caliper and mounting support as shown in the figure.
    Fig 1: Identifying Retaining Clip To Caliper And Mounting Support
    G05544968Courtesy of MAZDA MOTORS CORP.
  2. Secure the retaining clip so that part A does not slip off from the caliper while installing part B to the mounting support.
  3. Verify that the retaining clip is securely installed to the caliper and the mounting support.

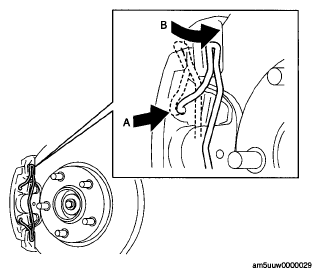

    Fig 2: [Locating Retaining Clip]
    G05544969Courtesy of MAZDA MOTORS CORP.
