Front Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING .)
  4. After installation, pump the brake pedal a few times and verify that the brakes do not drag.

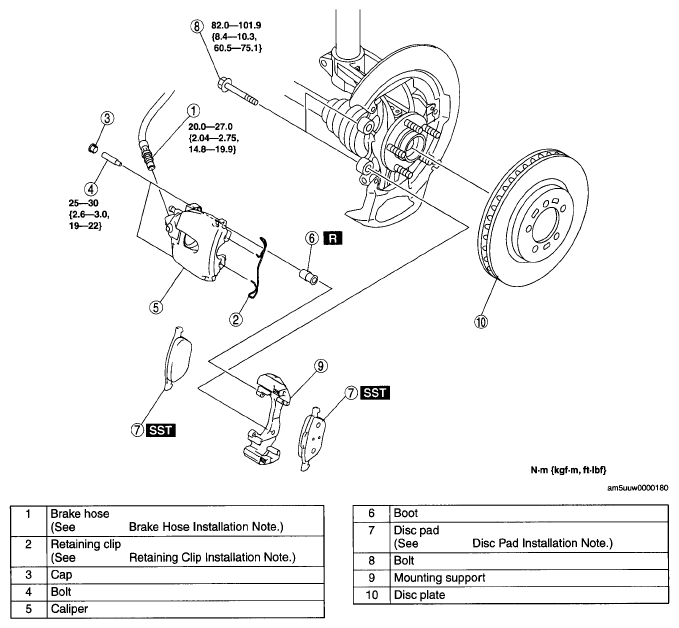

    Fig 1: Front Brake (Disc) Removing/Installing Replacement Components With Torque Specifications
    G05544966Courtesy of MAZDA MOTORS CORP.
