Disc Pad Installation Note

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Clean the exposed area of the piston.
Install the SST (49 F043 002) to the SST (49 B043 005).
Align the SST projection to the piston groove.

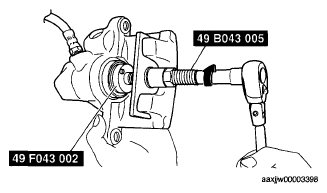

Fig 1: Identifying SST (49 F043 002) And (49 B043 005)
Courtesy of MAZDA MOTORS CORP.
Rotate part A on the SST in the direction of the arrow and secure the SST to the caliper.

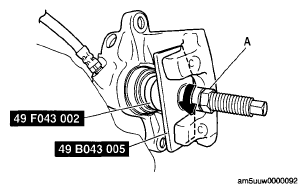

Fig 2: Rotating Part On SST
Courtesy of MAZDA MOTORS CORP.
Rotate the SST in the direction of the arrow and push the piston completely into the caliper.
NOTE:
- Even with the piston completely pushed in, the top the piston projects from the dust seal by approximately 2 mm {0.09 in}.

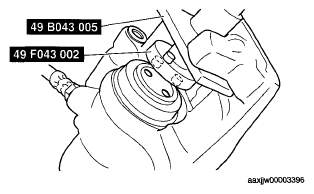

  Fig 3: Rotating SST
  Courtesy of MAZDA MOTORS CORP.
Rotate part A on the SST in the direction of the arrow using the tool and remove the SST from the caliper.
Install the disc pad (inner side) to the mounting support.
Install the disc pad (outer side) to the mounting support.

Fig 4: Rotating Part A On SST
Courtesy of MAZDA MOTORS CORP.
